Orbit is a surgical anatomy station. Three of the seventeen examined stations in the MRCS Part B OSCE are surgical anatomy. The anatomy stations put a prosected specimen, a model or an image in front of you and ask you to identify structures and say what they do, what they relate to and what happens when they are injured.
What you need to know for the Orbit station
The Orbit

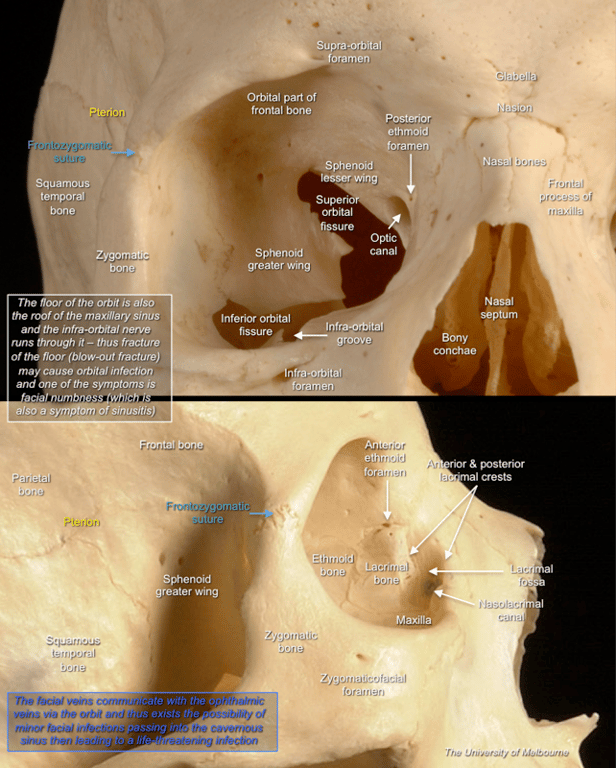

The orbits are conical or four-sided pyramidal cavities, which open into the midline of the face and point back into the head. Each consists of a base, an apex and four walls.
The apex lies near the medial end of superior orbital fissure and contains the optic canal (containing the optic nerve and ophthalmic artery), which communicates with middle cranial fossa.
The roof (superior wall) is formed primarily by the orbital plate frontal bone, and also the lesser wing of sphenoid near the apex of the orbit. The orbital surface presents medially by trochlear fovea and laterally by lacrimal fossa.
The floor (inferior wall) is formed by the orbital surface of maxilla, the orbital surface of zygomatic bone and the minute orbital process of palatine bone. Medially, near the orbital margin, is located the groove for nasolacrimal duct. Near the middle of the floor, located infraorbital groove, which leads to the infraorbital foramen. The floor is separated from the lateral wall by inferior orbital fissure, which connects the orbit to pterygopalatine and infratemporal fossa.
The medial wall is formed primarily by the orbital plate of ethmoid, as well as contributions from the frontal process of maxilla, the lacrimal bone, and a small part of the body of the sphenoid. It is the thinnest wall of the orbit, evidenced by pneumatized ethmoidal cells.
The lateral wall is formed by the frontal process of zygomatic and more posteriorly by the orbital plate of the greater wing of sphenoid. The bones meet at the zygomaticosphenoid suture. The lateral wall is the thickest wall of the orbit, important because it is the most exposed surface, highly vulnerable to blunt force trauma.
Boundaries
The base, which opens in the face, has four borders. The following bones take part in their formation:
Superior margin: frontal bone and sphenoid
Inferior margin: maxilla, palatine and zygomatic
Medial margin: ethmoid, lacrimal bone, and frontal
Lateral margin: zygomatic and sphenoid
Images from this station
What are you asked at the Orbit station?
The station runs to 19 questions over nine minutes. A prompt the station repeats — against each marker on a specimen, for instance — is listed once here; the model answers are in the question bank.
- Describe the boundaries of the bony orbit

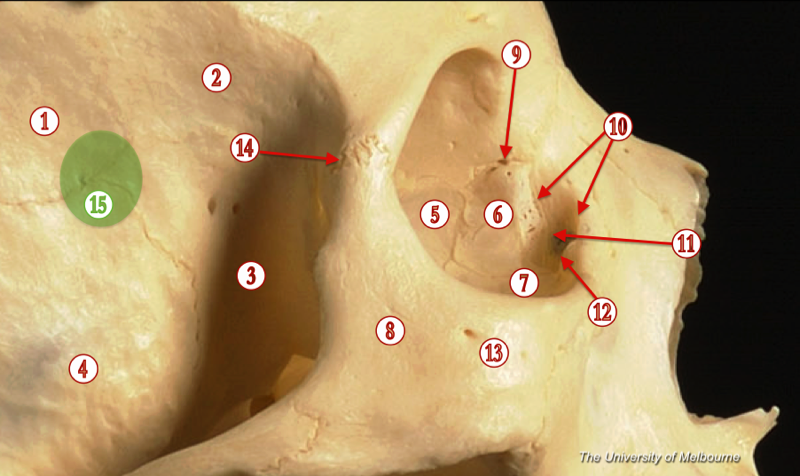

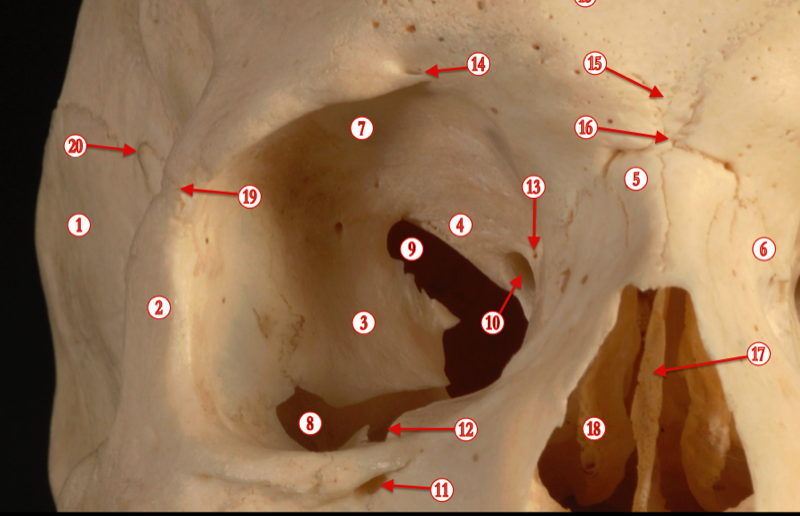

- Identify structures 1 and 2
- Identify structures 3 and 4
- Identify structures 5-7
- Identify structures 8 and 9
- What passes through area 10?
- Identify structures 11 and 12
- Identify structures 13 and 14
- Identify structures 15-17
- Identify structures 18-20
- Identify structures 1-4
- What is structure 8?
And 5 more at this station.
How is the anatomy station marked in MRCS Part B?
An anatomy station is marked out of 20, and all 20 marks go to clinical knowledge and its application. No communication, technical-skill or professionalism marks are available in an anatomy bay, which is unusual: in most other stations more than half the marks sit outside your factual knowledge.
FAQ
What does the Orbit station ask?
It opens with "Describe the boundaries of the bony orbit" and runs to 19 questions over nine minutes. An anatomy station is marked out of 20, and all 20 marks go to clinical knowledge and its application. No communication, technical-skill or professionalism marks are available in an anatomy bay, which is unusual: in most other stations more than half the marks sit outside your factual knowledge.
How many anatomy stations are there in MRCS Part B?
Three of the seventeen examined stations are surgical anatomy, and two more are surgical pathology. Together they make up the five Anatomy and surgical pathology stations of the Applied Knowledge component.
How are the anatomy stations marked?
Each station is marked out of 20 and all 20 marks are awarded for clinical knowledge and its application. You also receive a separate global rating of pass, borderline or fail for the station.
Are the specimens real?
Yes. Anatomy bays use prosected cadaveric specimens, models and images. Candidates report being shown photographs of specimens as well as the specimens themselves, so practise on real dissection photography rather than diagrams alone.
What happens if I get an early question wrong?
The intercollegiate guidance says that if a wrong answer would affect your performance on later questions at the same station, the examiner gives you the correct answer before moving on. One mistake does not have to cost you the whole bay.
How many stations are in the MRCS Part B OSCE?
Seventeen examined stations of nine minutes each, with a minute to read the task before each one. Two preparation stations and at least one rest station bring the circuit to about twenty, and the exam takes about three and a half hours.
What is the pass mark for MRCS Part B?
There is no published pass mark. The cut score is set separately for Applied Knowledge and Applied Skills, for each circuit, by borderline regression. Published pass rates across the 2024/25 diets ranged from 51% to 66%.
Can I fail a station and still pass?
Yes. There is no rule about how many stations you may fail: the cut score applies to your total mark in each component, so a weak station costs the marks you lost on it and strong stations elsewhere can make them back. Applied Knowledge and Applied Skills are passed separately and must both be passed at the same sitting, so a strong anatomy performance cannot rescue a weak communication one.
Dr Richard Miller, MBChB FRCS
Station summaries are reviewed against the current intercollegiate MRCS syllabus and the published marking blueprint. Guidance changes between diets: check the royal colleges' own pages before relying on a date, a fee or a threshold.
