Diaphragm is a surgical anatomy station. Three of the seventeen examined stations in the MRCS Part B OSCE are surgical anatomy. The anatomy stations put a prosected specimen, a model or an image in front of you and ask you to identify structures and say what they do, what they relate to and what happens when they are injured.
What you need to know for the Diaphragm station

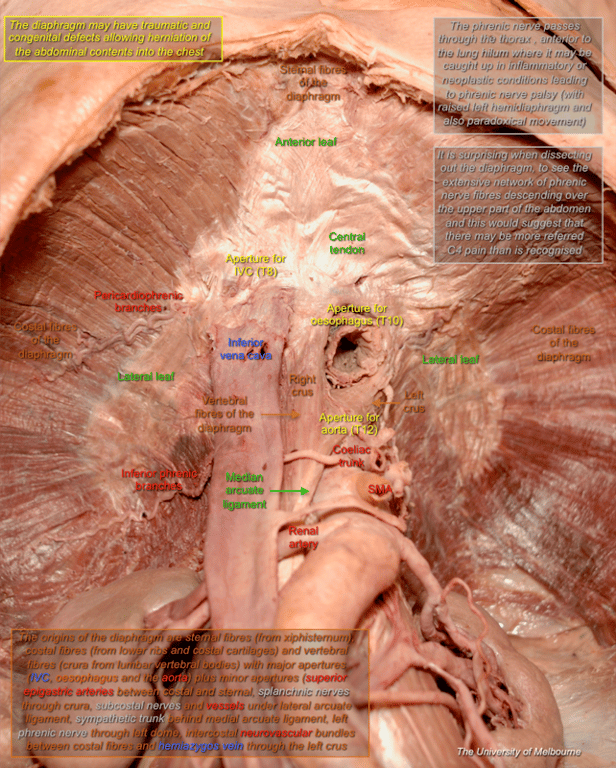

The diaphragm from below with the structures that pass through it, and the three openings every candidate is asked to level.
Structure
A domed sheet of muscle inserting into a central tendon shaped like a trefoil, on which the heart sits. Its sternal part arises from the back of the xiphoid, its costal part from the inner surfaces of the lower six ribs and their cartilages, and its lumbar part from the two crura and the arcuate ligaments. The right crus, from L1–3, is longer and splits to enclose the oesophagus; the left crus arises from L1–2. The medial arcuate ligament bridges psoas and the lateral arcuate ligament bridges quadratus lumborum; the median arcuate ligament joins the two crura in front of the aorta. It is supplied by the phrenic nerves (C3, 4, 5), each also giving sensation to the central part, so irritation is felt at the shoulder tip.
The three main openings
- Caval opening, T8 — in the central tendon. Inferior vena cava and the right phrenic nerve. Being in the tendon, it widens on inspiration and aids venous return.
- Oesophageal hiatus, T10 — in the muscle of the right crus. Oesophagus, the anterior and posterior vagal trunks, and oesophageal branches of the left gastric vessels. The muscle sling helps prevent reflux.
- Aortic hiatus, T12 — behind the diaphragm, under the median arcuate ligament, so the aorta is not squeezed. Aorta, thoracic duct and the azygos vein.
“8, 10, 12; vena cava, oesophagus, aorta” — and each opening's letter count matches its level.
Other structures crossing it
The sympathetic trunks pass behind the medial arcuate ligaments; the greater, lesser and least splanchnic nerves pierce the crura; the hemiazygos vein passes through the left crus; the superior epigastric vessels pass between the sternal and costal parts (the foramen of Morgagni), and the subcostal nerves and vessels behind the lateral arcuate ligaments. The left phrenic nerve pierces the muscle of the left dome on its own.
Development
Four sources: the septum transversum makes the central tendon, the pleuroperitoneal membranes close the canals on each side, the dorsal mesentery of the oesophagus makes the crura, and the body wall contributes the peripheral muscle, which is why the phrenic nerves come from the cervical segments where the septum transversum began. The openings follow: the caval opening sits in the septum-derived tendon, the oesophageal hiatus in the mesentery-derived crus, and the aorta lies behind everything, between the crura.
Congenital diaphragmatic hernia
Bochdalek, posterolateral and usually left-sided, from failure of the pleuroperitoneal membrane, is the common one and presents at birth with respiratory distress from pulmonary hypoplasia. Morgagni, anterior and retrosternal, is rarer and often found later. An oesophageal hiatus hernia is acquired, not congenital.
Images from this station
What are you asked at the Diaphragm station?
The station runs to 13 questions over nine minutes. A prompt the station repeats — against each marker on a specimen, for instance — is listed once here; the model answers are in the question bank.
- What are the name openings in the diaphragm?
- At what vertebral level are these openings found
- What structures pass through the diaphragmatic main openings?
- How do the diaphragmatic openings correspond to the embryological development of the diaphragm?
- What other structures pass through the diaphragm?

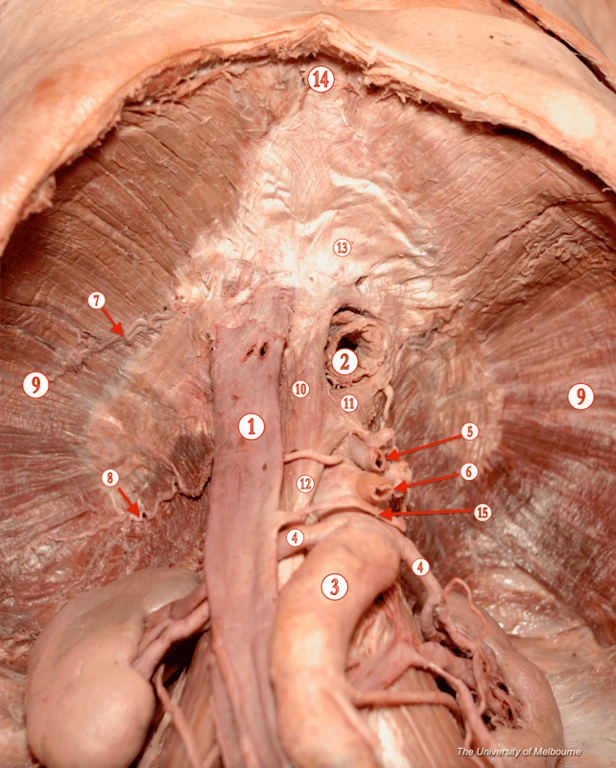

- Identify structures 1-3
- Identify structures 4-6
- Identify vessels 7-8
- Identify structures 9-11
- Identify structures 12-14
- Identify vessel 15
- What are the common sites for congenital diaphragmatic hernia?
