Biliary System is a surgical anatomy station. Three of the seventeen examined stations in the MRCS Part B OSCE are surgical anatomy. The anatomy stations put a prosected specimen, a model or an image in front of you and ask you to identify structures and say what they do, what they relate to and what happens when they are injured.
What you need to know for the Biliary System station

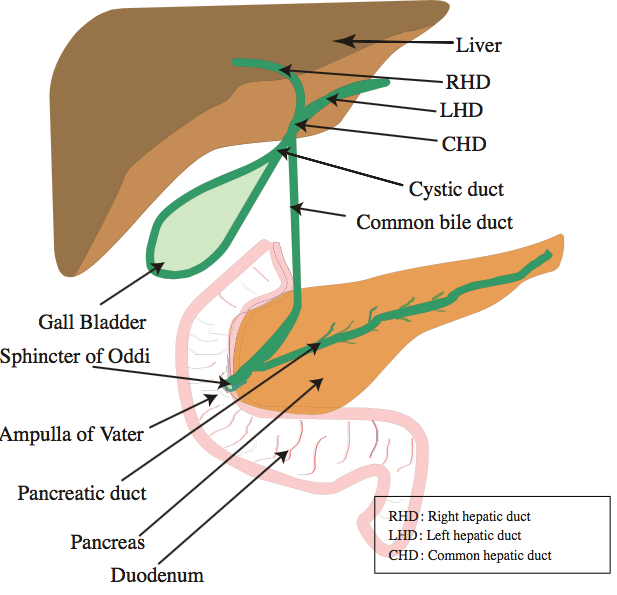

The Biliary System
The biliary system consists of the organs and ducts (bile ducts, gallbladder, and associated structures) that are involved in the production and transportation of bile.
The transportation of bile follows this sequence:
When the liver cells secrete bile, it is collected by a system of ducts that flow from the liver through the right and left hepatic ducts.
These ducts ultimately drain into the common hepatic duct.
The common hepatic duct then joins with the cystic duct from the gallbladder to form the common bile duct, which runs from the liver to the duodenum (the first section of the small intestine).
However, not all bile runs directly into the duodenum. About 50 percent of the bile produced by the liver is first stored in the gallbladder, located directly below the liver.
Then, when food is eaten CCK stimulates the gall bladder and the gallbladder contracts and releases stored bile into the duodenum to help break down the fats.

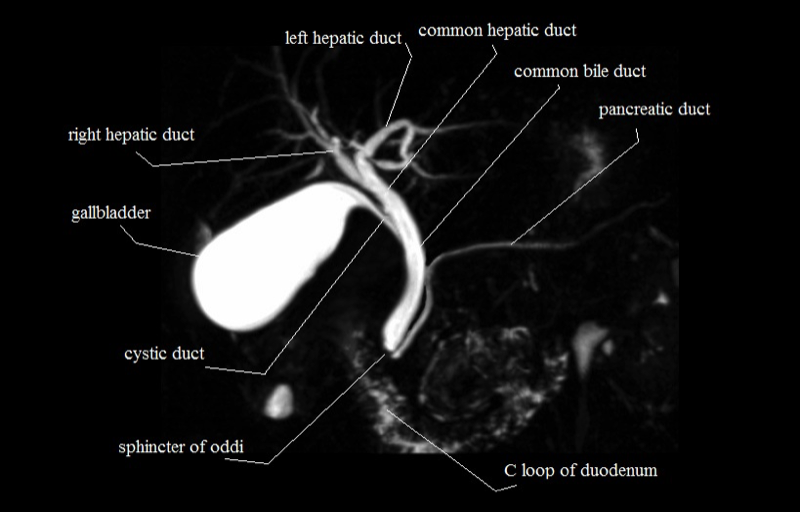

Images from this station
What are you asked at the Biliary System station?
The station runs to 17 questions over nine minutes. These are the questions as they are put to you; the model answers are in the question bank.
- What is the above study?
- Identify structures 1-4
- Identify structures 5-7
- Identify structures 8 and 9
- Describe the anatomy of the biliary system
- What is the function of the gall bladder?
- What is the blood supply of the gall bladder?
- What are the boundaries of Calot's triangle and what is its clinical significance?
- What are the contents of Calot's triangle?
- Why does the appendix quickly become gangrenous following inflammation while the gall bladder does not?
- What are the most common areas for gallstones in the biliary system and what effects do they cause?
- What is this procedure?
And 5 more at this station.
How is the anatomy station marked in MRCS Part B?
An anatomy station is marked out of 20, and all 20 marks go to clinical knowledge and its application. No communication, technical-skill or professionalism marks are available in an anatomy bay, which is unusual: in most other stations more than half the marks sit outside your factual knowledge.
FAQ
What does the Biliary System station ask?
It opens with "What is the above study?" and runs to 17 questions over nine minutes. An anatomy station is marked out of 20, and all 20 marks go to clinical knowledge and its application. No communication, technical-skill or professionalism marks are available in an anatomy bay, which is unusual: in most other stations more than half the marks sit outside your factual knowledge.
How many anatomy stations are there in MRCS Part B?
Three of the seventeen examined stations are surgical anatomy, and two more are surgical pathology. Together they make up the five Anatomy and surgical pathology stations of the Applied Knowledge component.
How are the anatomy stations marked?
Each station is marked out of 20 and all 20 marks are awarded for clinical knowledge and its application. You also receive a separate global rating of pass, borderline or fail for the station.
Are the specimens real?
Yes. Anatomy bays use prosected cadaveric specimens, models and images. Candidates report being shown photographs of specimens as well as the specimens themselves, so practise on real dissection photography rather than diagrams alone.
What happens if I get an early question wrong?
The intercollegiate guidance says that if a wrong answer would affect your performance on later questions at the same station, the examiner gives you the correct answer before moving on. One mistake does not have to cost you the whole bay.
How many stations are in the MRCS Part B OSCE?
Seventeen examined stations of nine minutes each, with a minute to read the task before each one. Two preparation stations and at least one rest station bring the circuit to about twenty, and the exam takes about three and a half hours.
What is the pass mark for MRCS Part B?
There is no published pass mark. The cut score is set separately for Applied Knowledge and Applied Skills, for each circuit, by borderline regression. Published pass rates across the 2024/25 diets ranged from 51% to 66%.
Can I fail a station and still pass?
Yes. There is no rule about how many stations you may fail: the cut score applies to your total mark in each component, so a weak station costs the marks you lost on it and strong stations elsewhere can make them back. Applied Knowledge and Applied Skills are passed separately and must both be passed at the same sitting, so a strong anatomy performance cannot rescue a weak communication one.
Dr Richard Miller, MBChB FRCS
Station summaries are reviewed against the current intercollegiate MRCS syllabus and the published marking blueprint. Guidance changes between diets: check the royal colleges' own pages before relying on a date, a fee or a threshold.
Practise this station
The question bank carries the model answer to every question above, with the rest of the anatomy stations.
